Description

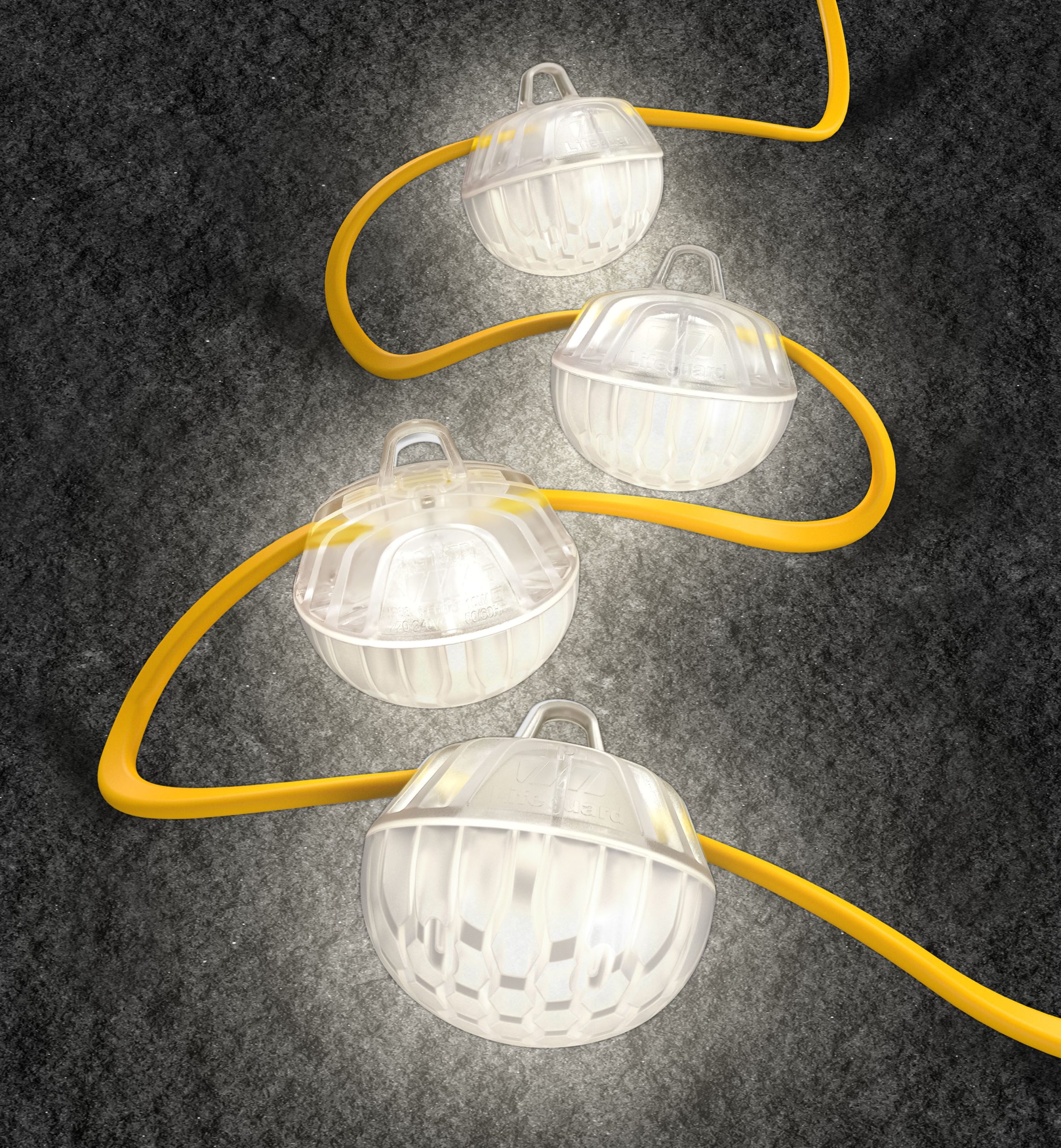

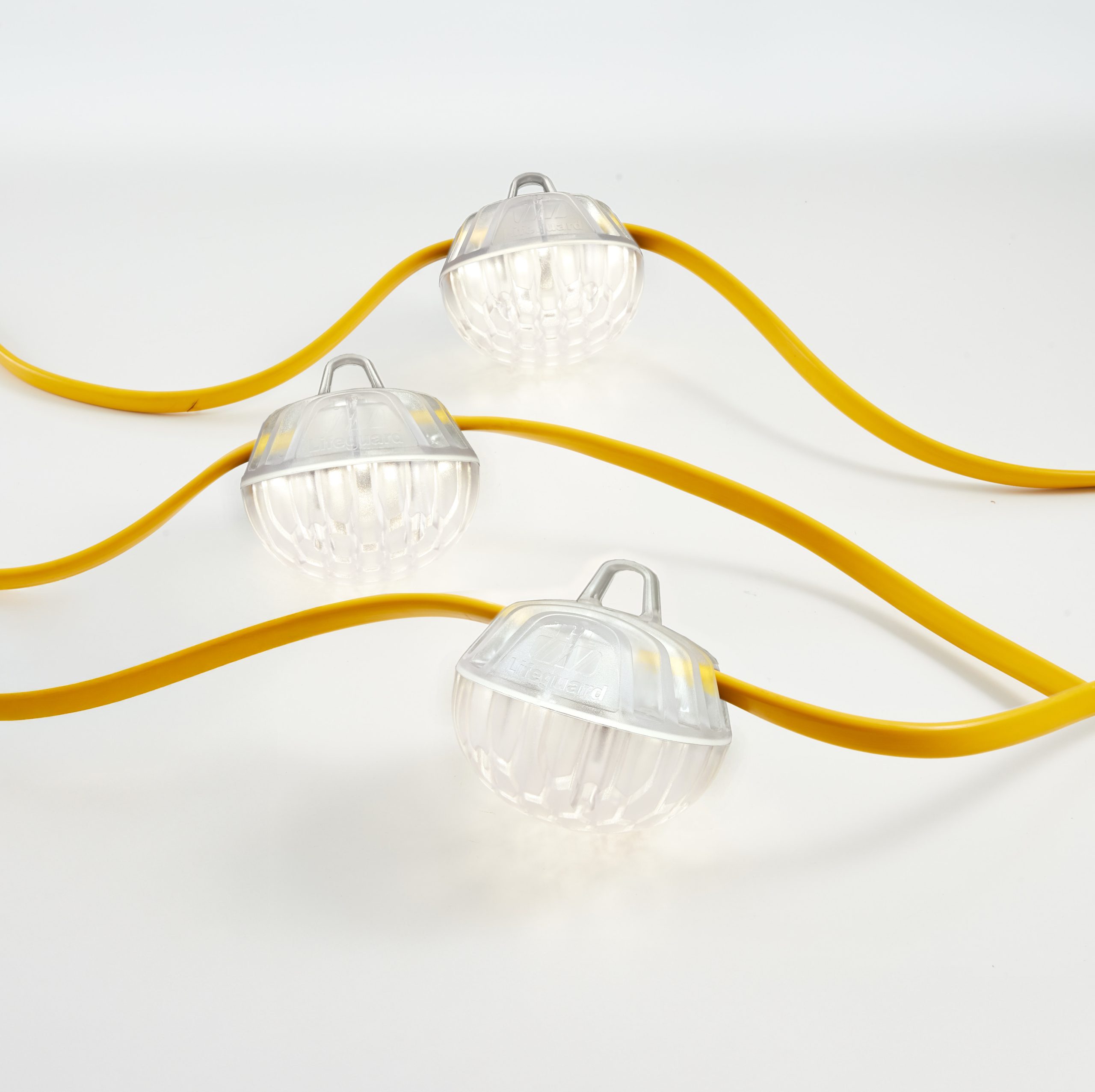

TEMPORARY PROTECTED LIGHTING (TPL®) – INDUSTRIAL CHAIN LIGHTING
- Rough Service with watertight IP68 lens rating
- Designed for indoor and outdoor applications
- Daisy chain up to 250m
- Can be manufactured to end user’s specifications
- AS/NZ 60598.2.20 compliant
- Highly impact resistant polycarbonate lens
- Custom lengths available
- Serviceable
Manufactured for use in Mining, Building and Construction, Shows and Events, Military, Shipbuilding and Salvage.
| SPECIFICATIONS | |
| Lamp | 10W LED each |
| IP Rating | 68 (@ 1.5m) |
| Connection | 10A or 15A flat pin,16A IEC |
| Voltage | 220V-240V AC (double insulated) |
| Cable | 2.5mm2 – 2C+E Flat tinned copper flex |
| Lens | Polycarbonate |
| Length | 12.5m or 25m |
| Part Number | Length | Plug | Lamps | Watts | Voltage | Wire |
| LG15TPL2510A | 25m | 10A | 10x LED | 100 | 220-240V AC | 2.5mm² |
| LG15TPL12.510A | 12.5m | 10A | 5x LED | 50 | 220-240V AC | 2.5mm² |
| LG15TPL2516A | 25m | 16A | 10x LED | 100 | 220-240V AC | 2.5mm² |
| LG15TPL12.516A | 12.5m | 16A | 5x LED | 50 | 220-240V AC | 2.5mm² |
